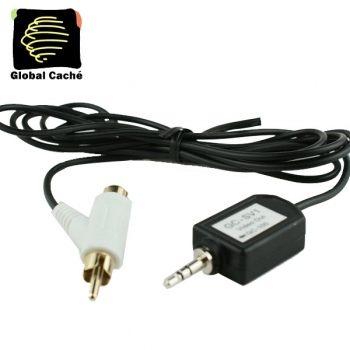

GC-SV1 Video Out Sensor

The GC-SV1 monitors the on-and-off status of video equipment by detecting the presence of a composite video signal. It is ideally suited for determining the power state of DVD players and VCRs. The device can be plugged directly into the Global Caché GC-100 Network Adapter, which connects the sensor to the network. Additionally, the GC-SV1 will work with other controllers that provide 5V power and accept digital logic (TTL) input. The GC-SV1 connector is a standard 3.5mm stereo jack. This sensor can be used with iTach IR connectors in “Sensor” mode, but due to a design alteration must be connected to the unit with an audio crossover cable. The wires that need to be swapped are the tip and the ring.

Specifications
Global Caché Product No.:	GC-SV1
Dimensions:	1" x .75"
Cord Length:	3 feet (approx.)
Specifications	Minimum	Typical	Maximum
Sensor output to video present	-	-	40mS
Sensor output to video absent	-	-	40mS
Composite video input level	0.5V p-p	> -	> 2.0V p-p
Sensor output ON @100µA	Vcc - 0.1V	-	-
Sensor output OFF @100µA	-	-	0.1V
Supply voltage	4.50V	-	5.50V
Supply current	-	50µA	100µA
