GC-100 Network Adapter

Global Caché’s GC-100 family of Network Adapters connects almost
any piece of electronic equipment to a network so that it can be
accessed, controlled, and maintained from anywhere over a network or
the Internet.
Our Network Adapters employ a unique and transparent
architecture that is engineered to seamlessly integrate with all types
of control, automation, and monitoring environments.
Compact and economical, they provide a quick, simple and cost-effective way to
bring the advantages of device networking to homes, educational
institutions, businesses, and houses of worship.

Key Features

• Network virtually any device in minutes
• Connects infrared (IR) devices to a TCP/IP network, including IR input
• Connects RS232, Sony Control-S devices,and sensors to a TCP/IP network
• Connects contact closure (relay) devices to a TCP/IP network
• Works well with wireless
• Low profile, stylish enclosure
• Peripheral equipment includes IR learning and IR input over a TCP/IP network
• Available in 3 sizes with a 19” rack mount version
• Silent, fan-free, environmentally friendly?RoHS compliant

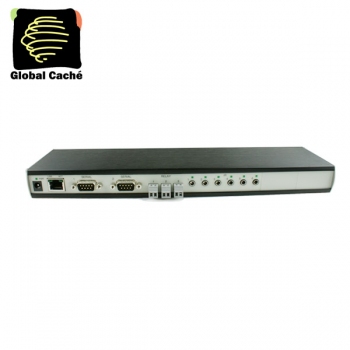

GC-100-12 Technical Specifications
• Two serial ports
• Three relay connections
• Six independent IR outputs or sensor inputs
• Dimensions: 12.0” L x 3.0” D x 1.3” H

Power Input
•9 to 18V DC@300mA (wall power adapter included)
•International 220V available

LED indicators
•Power
•Network activity
•Link status
•IR transmission
•Sensor input state

Setup
•Integrated web server for easy configuration
•Configure through TCP/IP set up commands

Discovery & Setup Utility
•Included Windows-based software simplifies GC-100 network discovery of units and setup
• AMX beacon support

Network Interface
•Connector: RJ45
•Protocol: 10 Base-T Ethernet
•Standards: TCP, DHCP, HTTP

Serial Interface?
•Connector: Male DB9
•Data Rates: 1200 baud to 57.6 Kbaud
•Parity: odd, even, none
•Flow control: bi-directional hardware RTS/CTS
•IR input: utilizing a GC-IRE and GCRG1, IR commands are received via RS232 port.

IR & Sensor Interface?
•Connector: 3.5mm stereo jack
•Selectable IR outputs or sensor inputs per port
•IR input: IR commands received via RS232 port utilizing GC-IRE and GC-RG1
•IR emitter supplied for each IR port
•GC-BL2 IR Blaster support

Relay Interface?
•Connector: screw terminal plug, 24V AC/DC@.5A, N.O. contact with transient voltage suppression
•Capability: contact closures

Certifications?
•FCC (Part 15, Class B), C-tick, CE
•RoHs compliant
