Available Colors: White or Black

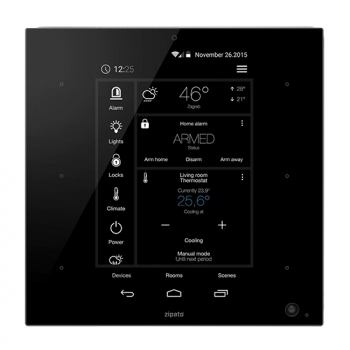

The ZipaTile is primarily a wall-mount Android-powered home automation controller (v5 Lollipop) that combines an 8-inch touchscreen tablet (800 x 1280) with built-in communication radios and sensors for Motion, Shock, Sound, Light, Temperature, and Humidity. It also comes with an external temperature sensor, and provides a dual dry output and dry input for wiring in other external devices.

Complete Feature List

Wall-Mount Tablet with Wi-Fi

• Touch keypad with 6 scene buttons
• Web browser, email, Skype
• Multimedia/home theater control
• Sticky notes
• News stream
• Photo frame
• Weather forecast
• Room temperature display
• Room humidity display
• Room illuminance display

Home Automation Controller

• Remote control with smartphone
• Online rule creator
• Scene manager
• Room manager
• Z-Wave, Nest, Philips Hue, Sonos, Bluetooth, Homekit...

Security System & Alarm

• Remote control with smartphone
• 24/7 central monitoring
• Photo and video messages
• Motion sensor
• Noise sensor
• Shock sensor
• Multi-sound alarm siren

Elder Care

• Motion sensor
• Noise detector
• Automatic check calls
• Panic button with auto call
• Sound reminders
• Video and voice calls

Thermostat

• Remote control with smartphone
• Air condition control
• Gas/floor heating control
• Temperature meter
• Exterior temperature meter



IP Camera

• Remote control with smartphone
• 2 megapixels for high-resolution
• Live video stream (H.264)
• Motion-activated and scheduled recordings

Intercom

• Remote control with smartphone
• Video calls
• Conference calls
• Door phone control
• SIP server client
• Dual-network IP connectivity

How It Works

The Zipato ZipaTile receives programming information from the Zipato web portal through your existing Internet router, and uses wireless technologies, such as Z-Wave or Bluetooth, to communicate with other devices. Once programming is sent from the cloud to the ZipaTile, settings are stored locally, so an Internet connection is not required to control connected devices.







Key Features

• Powered by an ARM Cortex-A9, Quad-core 1.6GHz CPU
• Runs on the Android 5 Lollipop operating system
• 8192MB of flash memory and 1024MB of RAM

Supported Protocols

• Wi-Fi 802.11 b/g/n
• Z-Wave
• Bluetooth 4.0
• Philips Hue
• Sonos
• Nest
• Ethernet (with optional adapter)

Technical Details

• Manufacturer Part #:
  • Black: ZT.ZWUS
  • White: ZT.ZWUS.WHT
• CPU: ARM Cortex-A9, Quad-core 1.6GHz
• Memory: 1024MB RAM
• Flash Memory: 8192MB
• Operating System: Android 5 Lollipop
• Dual Dry Output: 230VAC, 1A
• Dry Input: 12-24VDC
• Video Camera: 2MP
• Speaker: 8Ω/0.5W
• Approvals: Safety: UL power supply; EMC: FCC, CE; RoHS
• Warranty: 1 Year

Power

• Power Input: 5VDC (power supply included)
• Power Supply Input: 100-240VAC, 50/60Hz
• Power Usage: <2W (idle), 7W (max.)
• Backup Battery: Li-Ion 3.7V 2000mAh (included)

Physical

• Operating Temperature: 32° to 104°F (0°to 40°C)
• Storage Temperature: -13° to 158°F (-25° to 70°C)
• Humidity: 5 to 95 percent, non-condensing
• Dimensions: 8.05(W) x 8.05(H) x 0.35(D) inches (205 x 205 x 5 mm)
• Weight: 1.09 pounds / 17.42 ounces (494g)





All-In-One Smart Home Hub

With an impressive plethora of built-in features, the first-of-its-kind Zipato ZipaTile Home Automation System is so much more than a smart home hub. It's a complete starter system in a single wall-mount tablet. From its built-in sensors and touchscreen keypad to the integrated IP camera, speaker, and microphone, the ZipaTile offers the ultimate starting point for building out your system. And best of all, it serves as the command center for all of the most popular communications protocols, including Z-Wave, Wi-Fi, and Bluetooth.

• Touchscreen controller manages devices and provides local control
• Supports Z-Wave, Bluetooth, and Wi-Fi devices out-of-the-box
• Built-in sensors detect motion, noise, shock, temperature, humidity, light
• Displays video from integrated IP camera with speaker and microphone
• Simple drag and drop rule creation in Zipato web portal
• Free app for Apple and Android mobile devices
• Supports "clustering" for use with additional controllers

Design Features
[]	Z-Wave
[]	868.42MHz EU
[]	0°C - 40°C
[]	30% to 80%
[Certification]	FCC, CE, RoHS
