Normal operating voltage: 250V/60Hz
Frequency range:868.42 MHz
Wireless Range: Up to 30 meters in line of sight
Max. Buzzer‐sound: Approx. 100dBa at 60 cm distance
Battery types: Gold capacitor for 60 sec backup

Basic Operations

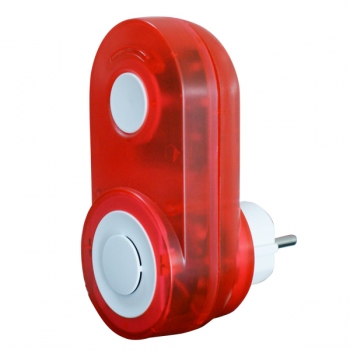

‐ The iAlarm can be configured to the users' own preferences.
‐ The iAlarm can be used in alarm systems, using its buzzer to generate sounds and/or notifying the user using various light

patterns.
‐ The iAlarm can also be used to generate other sounds or notifications, for instance as a doorbell.
‐ The iAlarm has a button that can either be used as a panic button or to remote control a device.
‐ The iAlarm will send an alarm message when it gets unplugged.
‐ The iAlarm has an onboard temperature sensor.

Mounting
‐ Place the iAlarm into an outlet socket. After one hour, the iAlarm is fully operational.

Manual control
1. Press and release the push button of the device, the light indicator will turn on. When another device is associated to

the iAlarm, it will send a message to this device. This way, the iAlarm can be used to remote control another device or as a

panic button.
2. If used to remote control another device: Press and release the push button again to turn the device
off.
3. If the alarm (or light notification) is turned on, you can press and release the push button to turn it off.

Remote control
Z‐Wave devices can remote control the iAlarm in the following ways:
• The sound and light patterns can be turned on/off by Z‐Wave devices.
• The sound and light patterns can be configured by Z‐Wave devices.
• The measured temperature of the onboard temperature sensor can be read by Z‐Wave devices.

Design Features
[]	Z-Wave
[]	908.42MHz US
[]	110V AC 60Hz
[]	30% to 80%
